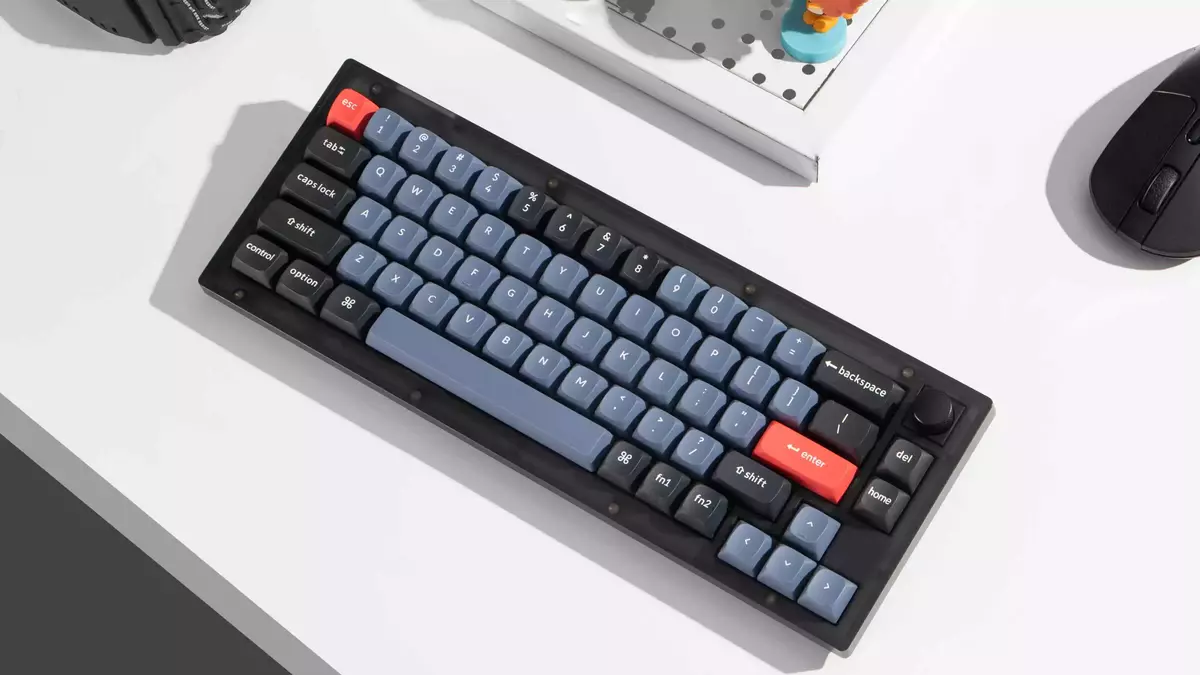

Keychron V2 Mechanical Keyboard

Keychron V2 Knob version is a fully customized 65% layout mechanical keyboard packed with all premium features and unlimited possibilities. V2 is an all-plastic keyboard that allows customizable capabilities for every key switch, keycap, knob, and stabilizer. It’s made for your personalized experience and a more comfortable typing experience.


ISO Fully Assembled Brown Switches ANSI Barebone Carbon BlackANSI Barebone Frosted Black


In Stock


Compatible Bundles

Keychron V2 Bundle


KeychronV2 Board




Reviews (0)

Keychron V2 Mechanical Keyboard

ANSI & ISO Layouts

ISO layout is widely used in Europe while the ANSI layout is widely used by the rest of the world. If you live in Europe, we recommend you to purchase the "Barebone ISO” version with the corresponding ISO Dye-sub PBT keycap sets together. The "Barebone ISO” is suitable for all ISO keyboard countries like the UK, Germany, France, Italy, Spain, Denmark, Norway, Sweden, Finland, Iceland, etc.


The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South facing RGB LED Lights

The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

PS: Changing the knob with a badge or key requires an additional PCB (sold separately).

Programmable Knob

Designed to enhance your creative workflow, the premium rotary encoder allows you to customize your favorite keys and macros through the innovative VIA software with ease.

You can easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, opacity, volume, selecting video clips or photos, or backlight hue. The download link for the QMK/VIA app for programming is in the softwares tab at the top of this page.



123.25 mm


329.9 mm

Front Height

20.23 mm (without keycaps)

Back Height

26.75 mm (without keycaps)

Feet Height

2.4 mm


3.5° / 7.91° / 10.88°


855 g ± 10 g (Fully Assembled version)

Body Material

ABS Plastic

Plate Material


Mount Type

Tray Mount Design


Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)


Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)

Polling Rate

1000 Hz


South-facing RGB LED


Gateron Brown G Pro (Fully Assembled version)

Switch Support

Hot-swappable (5 pin & 3 pin)


Screw-in PCB stabiliser


Type-C cable + Type-A to Type-C adapter

Learn more about the Keychron V2 such as the V2 shortcuts, assembling the V2, factory reset, and more in the FAQ section.
